The correct installation of the surgical shadowless lamp is crucial, as it affects the smooth progress of the surgery and the convenience and accuracy of the operation by medical staff. The following are some key issues to pay attention to during installation.
1、 In terms of venue preparation
Firstly, it is necessary to ensure that the ceiling structure of the installation site can withstand the weight of shadowless lamps. Generally speaking, different models of surgical shadowless lamps have specific weight ranges. For example, common mid to high end models may weigh tens of kilograms to hundreds of kilograms. It is necessary to confirm in advance whether the ceiling’s load-bearing capacity meets the standards and reinforce it if necessary.

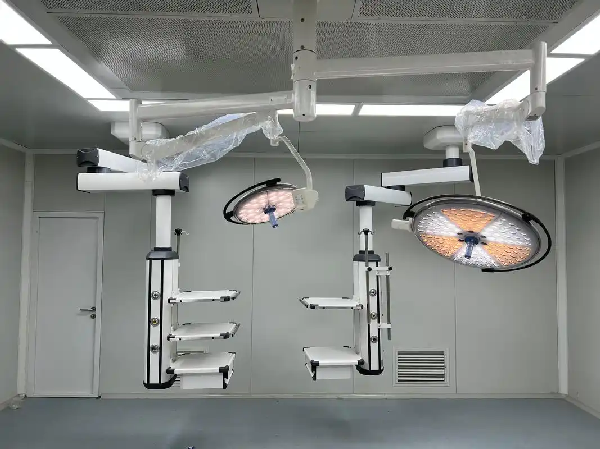

At the same time, the installation location should be planned reasonably. The shadowless lamp should be located directly above the operating table to ensure that the light can cover the surgical area evenly and unobstructed. It is usually required that its center position be aligned with the center of the operating table, and the deviation should not be too large, generally controlled within a few centimeters, in order to achieve the best shadowless effect.
2、 Electrical connection aspect
Surgical shadowless lamps have high requirements for power supply. To ensure that the connected power supply voltage is stable and meets the rated voltage requirements of shadowless lamps, most shadowless lamps have a rated voltage of 220V, but there are also some special models that may be different and need to be carefully checked.
In addition, the laying of electrical circuits must comply with safety regulations. The circuit should have good insulation performance to prevent leakage risk, and grounding treatment should be done well. The grounding resistance should meet the relevant standard requirements, generally less than 4 Ω, to ensure electrical safety during use.
3、 Installation and debugging process
During the installation process, it is necessary to strictly follow the installation instructions provided by the manufacturer. The connection of each component should be firm, such as the connection between the lamp arm and the lamp head, the connection between the lamp arm and the ceiling fixing bracket, etc. It is necessary to ensure that the screws are tightened and the locking device is installed in place to avoid loosening or even falling off during subsequent use.
After installation, detailed debugging work must be carried out. To adjust the brightness, color temperature, and other parameters of the shadowless lamp to meet the needs of different surgical types. For example, some precision surgeries may require high brightness and appropriate color temperature to clearly present the tissue condition of the surgical site. At the same time, it is necessary to check the shadowless effect by placing a test object on the operating table, observing the shadow situation under the light, and continuously adjusting the angle and position of the lamp head until the ideal shadowless state is achieved.
Only by fully paying attention to these issues can we ensure the correct installation, safe and reliable use of the surgical shadowless lamp, and provide strong guarantees for the successful implementation of the surgery.
